NEMA14(35mm) 1.8Degree 2-phase stepper motor
General Specification:
| Item | Specification |
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5%(full step, no load) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 28N( 20mm from the flange) |
| Max.Axial Force | 10N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |

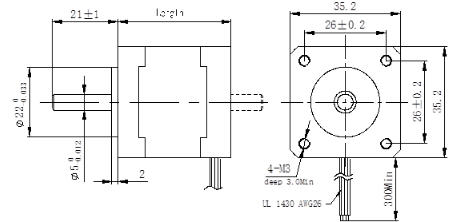

Mechanical Size:
Wiring Diagram:
Electricl Specification:
| Model | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | Detent Torque | #of Leads | Rotor Inertia | Length | Weight |
| Single Shaft | Daulf Shaft | A | Ω | mH | N.m | N.m | # | g-cm2 | mm | kg |
| JQ35HB26-0284A | JQ35HB26-0284B | 0.28 | 26 | 27 | 0.07 | 0.006 | 4 | 10 | 26±1 | 0.13 |
| JQ35HB28-0504A | JQ35HB28-0504B | 0.5 | 20 | 14 | 0.1 | 0.008 | 4 | 11 | 28±1 | 0.14 |
| JQ35HB36-1004A | JQ35HB36-1004B | 1.0 | 2.7 | 4.3 | 0.14 | 0.01 | 4 | 14 | 36±1 | 0.18 |
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
Motor Application Fields:
Medical: Syringe pump, X ray oncology equipment/ Collimators; CT; Medical bed, Face mask machine; Disability Equipment liquid Analyser; Physiotherapy Equipment; Injection Pump; Blood Analyser ; Biochemical Analyzer; Disability equipment lift
Textile: Embroidery Machines; Flat Knitting Machines;Screen Printing Machines;Spinning Machines;Yarn Preparation Machines.
Industrial Control: CNC; Pick and Place Machines, Carving Machine; Printer; Industrial Analyser; SMT; Engraving and Marking Equipment.
Logistics: Logistic&Storage Equipment ;ConveyorSystem; Conveyor System;Barrier Opening System;Door Opening System.
Household Electrical: Mover;Swimming Pool Cleaner;Coffee Machine; TV System
Office Automation: Printer, 3D Printer
Automobile: Seat Pump; Door System; Air Damper/Mixer; Lamp System
